The operation is simple, the operation is flexible, it can perform compound actions, and the bending process is integrated, and the quality is guaranteed.

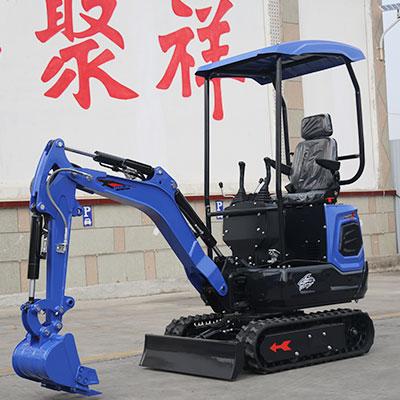

The 12-model mini excavator is the smallest excavator. It can freely enter a narrow range of work, has a favorable price, and is suitable for home use.
Technical parameters
| Engine Model | Koop 192 |
| Power (kW/HP) | 8.6/12 |
| Main pump | Twin pumps Parker hydraulic pump |
| Bucket capacity | 0.022m³ |
| Max.Digging depth | 1760mm |
| Max. Unloading height | 1825mm |
| Operating weight | 1200kg |
| Total length | 2200mm |
| Total height | 2150mm |
| Total width | 940mm |
Mechanical operation.
Foldable foot pedal,increasing usage space.
Electronic hydraulic oil radiator.
American Parker hydraulic pump.

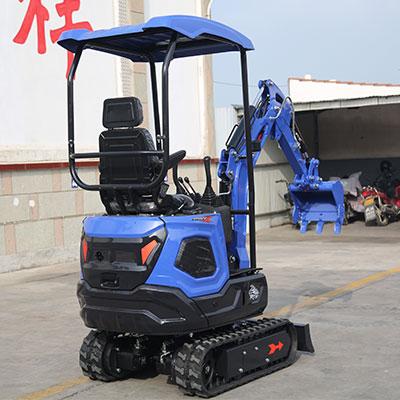

Rear cover flip design, seat front flip design, large opening area,Convenient for later maintenance.
