Operating weight :2145kg
Engine :Changchai 390 ,/Kubota 1105
Power:21 KW/14.2 KW
Bucket:0.06 CBM
Max Digging Depth: 2570mm
Max Unloading Height: 2555mm

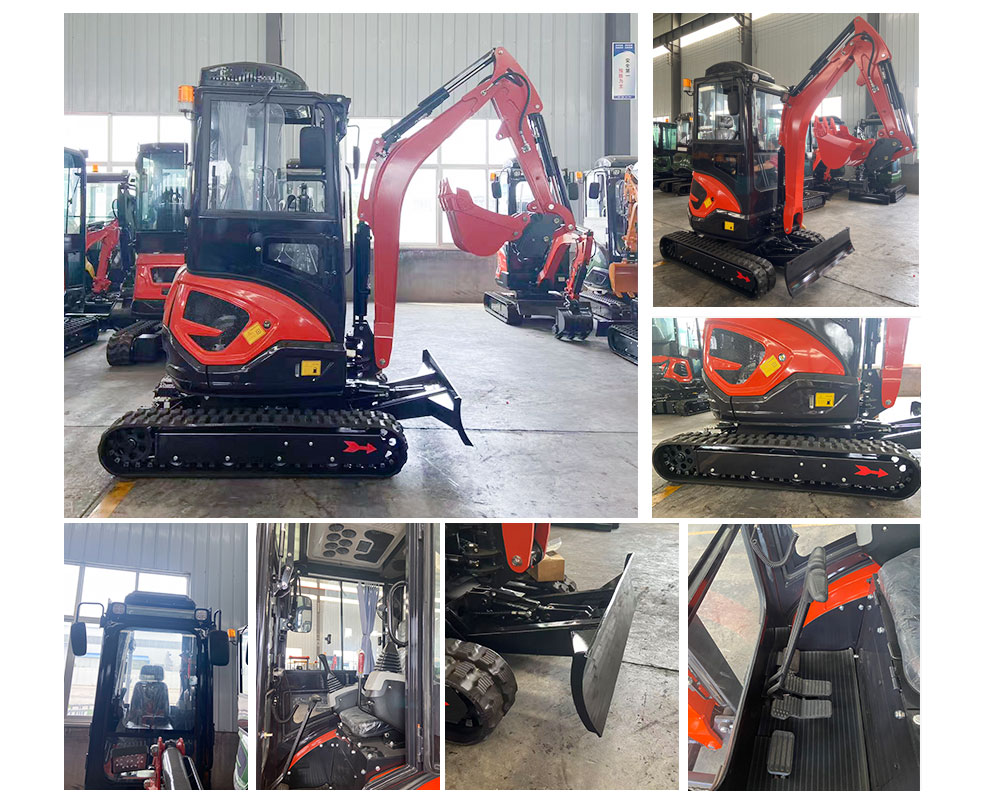

The 25u-model mini excavator is our largest model at present. It is also a newly designed shape. With a multi-way valve, it can flexibly perform compound actions without jamming.
Technical parameters
| Engine Model | Changchai 390 |
| Power (kW/HP) | 20/30 |
| Main pump | ParkerTriple load sensitive hydraulic gear pump |
| Bucket capacity | 0.05m³ |
| Max.Digging depth | 2600mm |
| Max.Unloading height | 2700mm |
| Operating weight | 2500kg |
| Total length | 2700mm |
| Total height | 2400mm |
| Total width | 1300mm |

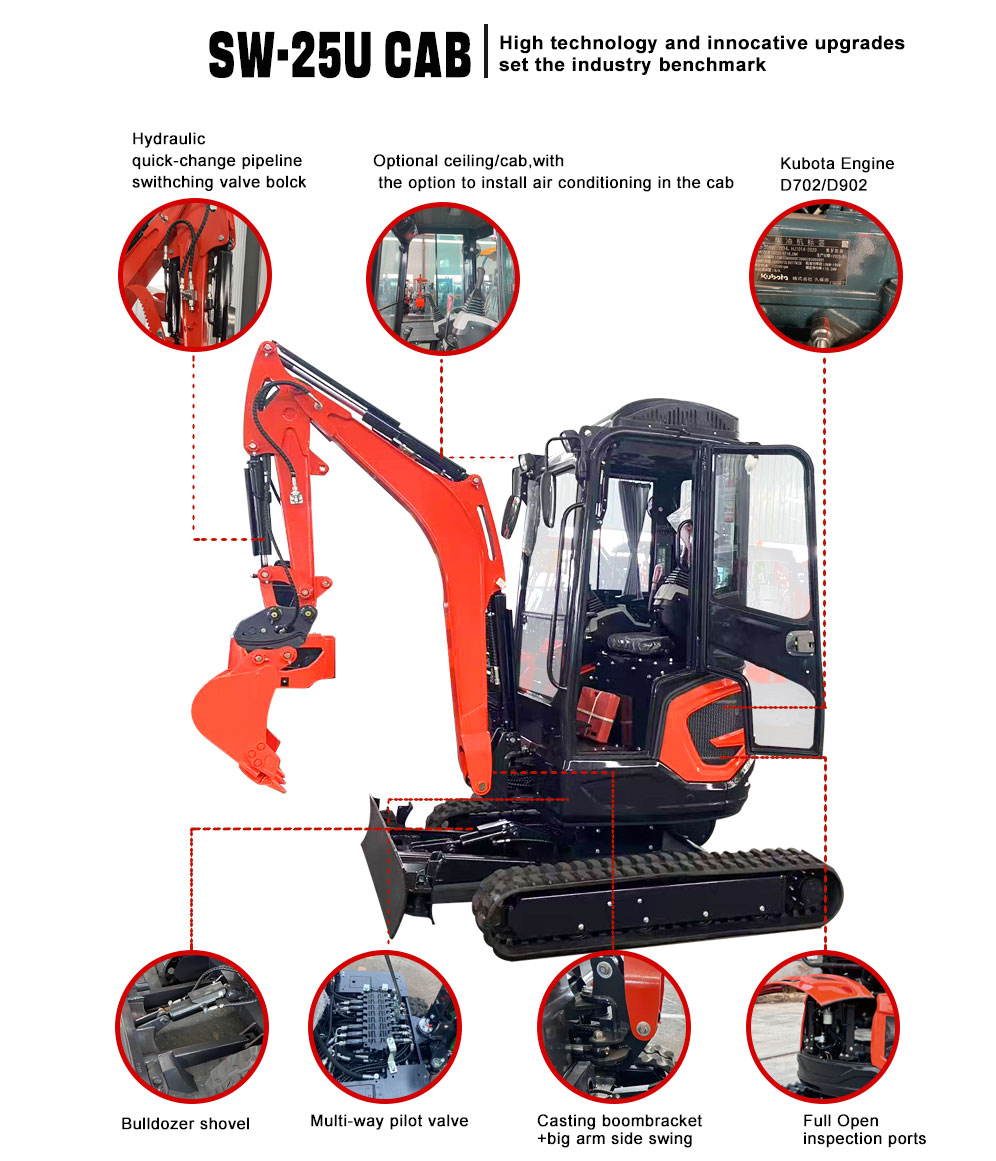

Tailless design, rounded and full shape.
American Parker hydraulic pump,load sensitive hydraulic system.
Rear cover flip design, seat front flip design, large opening area,Convenient for later maintenance.
Fully hydraulically controlled, the bulldozing shovel is controlled next to the right-hand joystick.
Upside-down control box,increase loading and unloading space, easy for users to get on and off.
Four heavy wheels on the left and right sides.
Laizhou Shanwa Engineering Machinery Co., Ltd.
+86 188 666 591 39Follow Us
Copyright © 2024 Laizhou Shanwa Engineering Co., Ltd. All rights reserved.
If you have any queries, get in touch today! Don't hesitate. We try to take the extra step for our customer satisfaction.
| Product Picture | Product Name |
 |

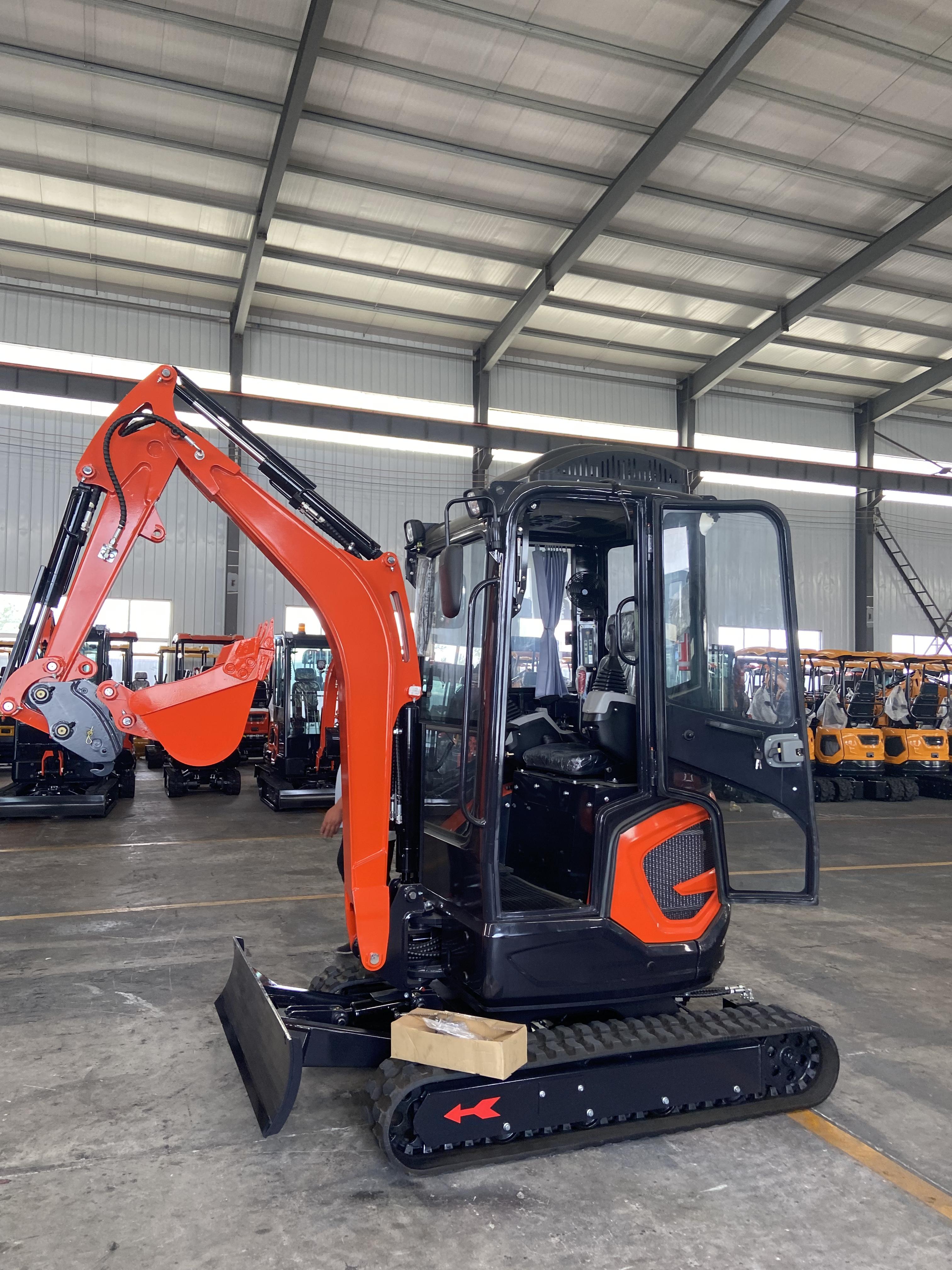

SW-25 CAB |
