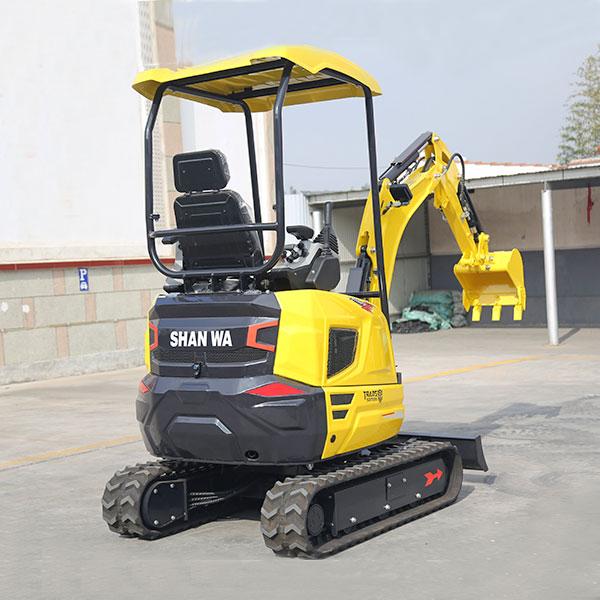

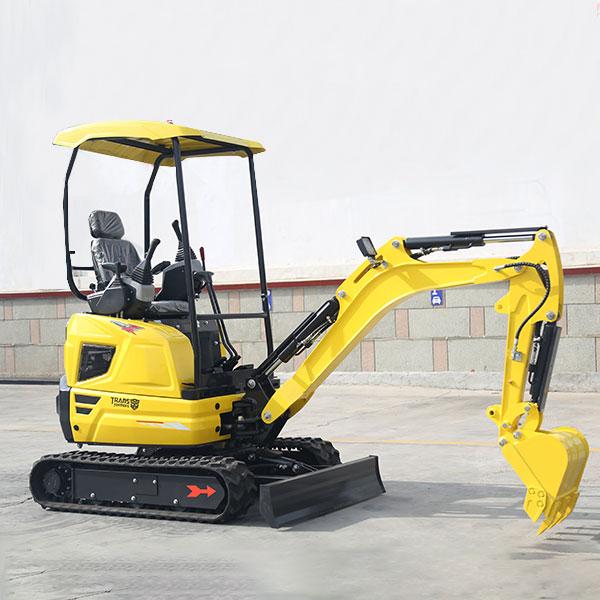

Model: SW-20U Mini Excavator
Operating weight :2000kg
Engine :Euro 5 LAIDONG385,20kw/Kubota D902 11.8KW
Bucket:0.04CBM
Max Digging Depth:2300mm
Max Unloading Height:2358mm

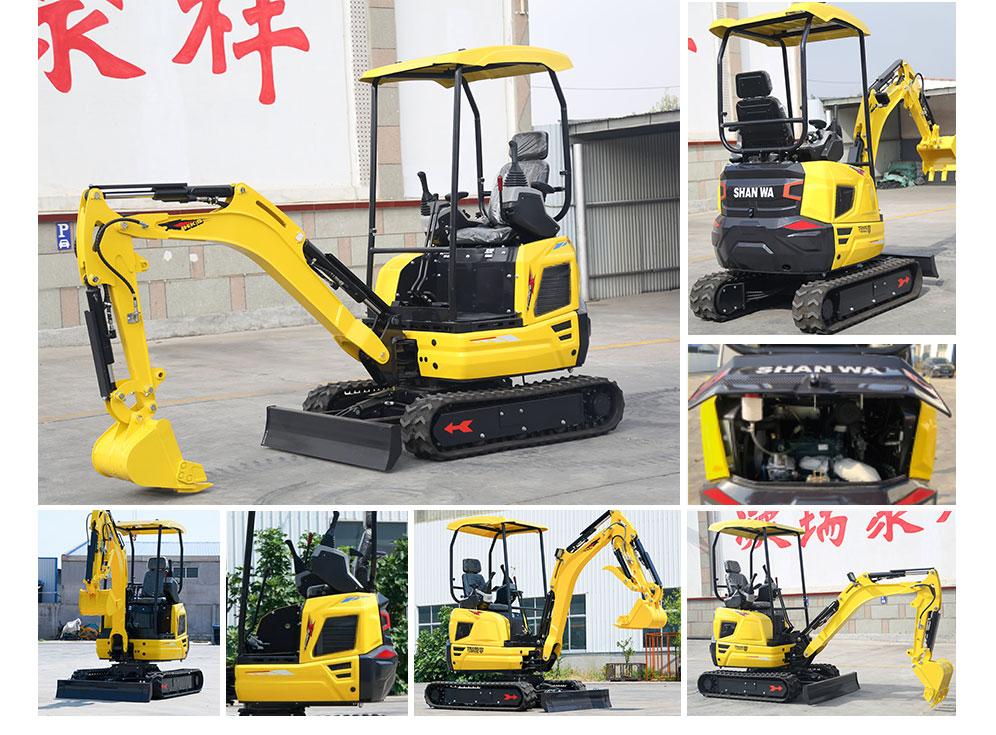

The 20U-model mini excavator is a new design of ours. It adopts the mecha shape of Transformers and truly achieves a tailless design. It is the one with the highest standard configuration and a standard hidden travel motor. It is the best one in terms of appearance and use experience.

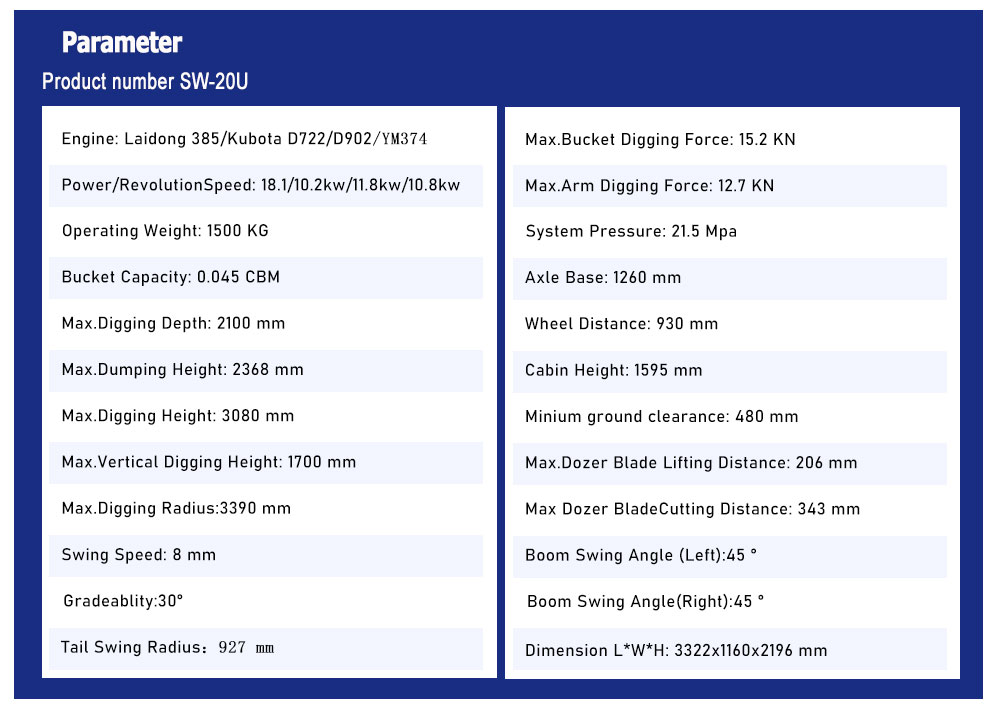

Technical parameters
| Engine Model | Laidong 385 |
| Power (kW/HP) | 18.8/39 |
| Main pump | Typhon plunger pump |
| Bucket capacity | 0.04m³ |
| Max.Digging depth | 2300mm |
| Max.Unloading height | 2385mm |
| Operating weight | 2000kg |
| Total length | 2400mm |
| Total height | 2200mm |
| Total width | 1200mm |

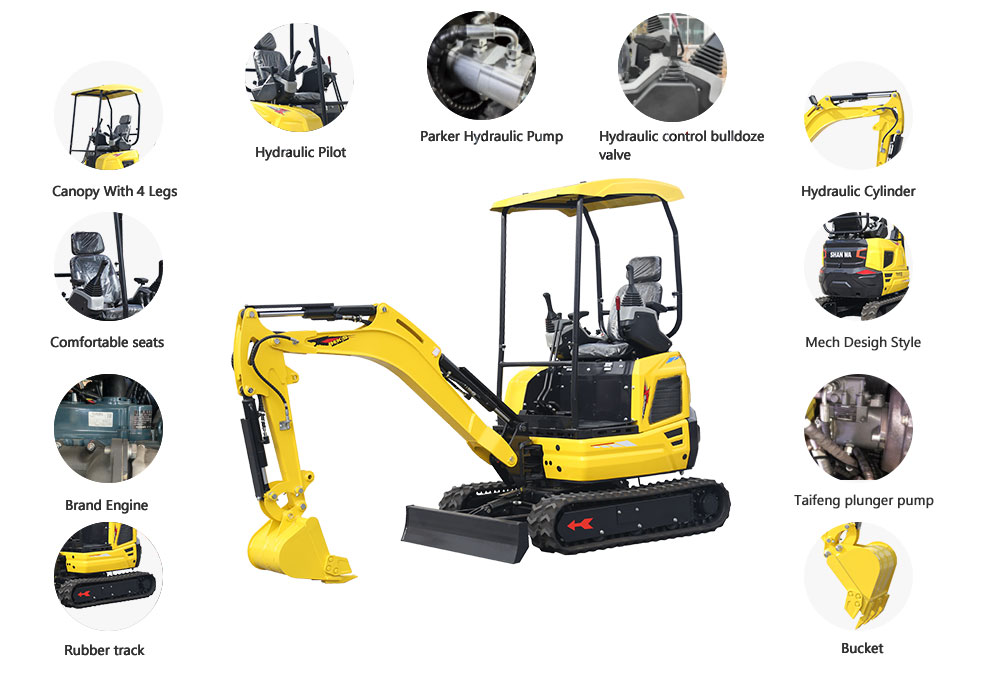

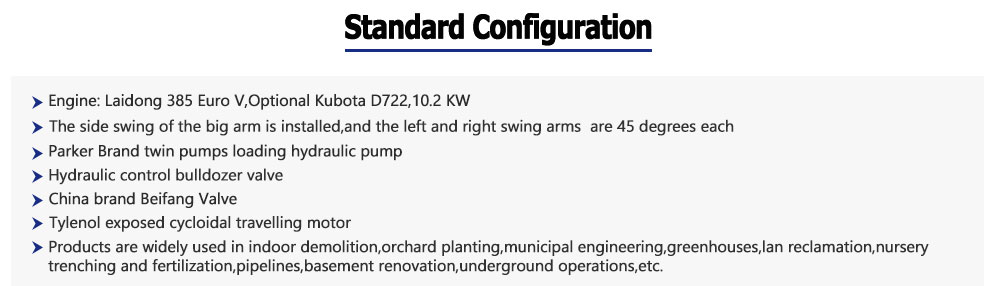

Standard side swing.
Flip up control box.
Hide single speed plunger walking motor.
Standard Taifeng plunger pump.
Mech design style,more fashionable and cool.
Hydraulic control bulldozer valve.
Rear cover fip design,seat front fip design,large opening area,convenient for later maintenance.
